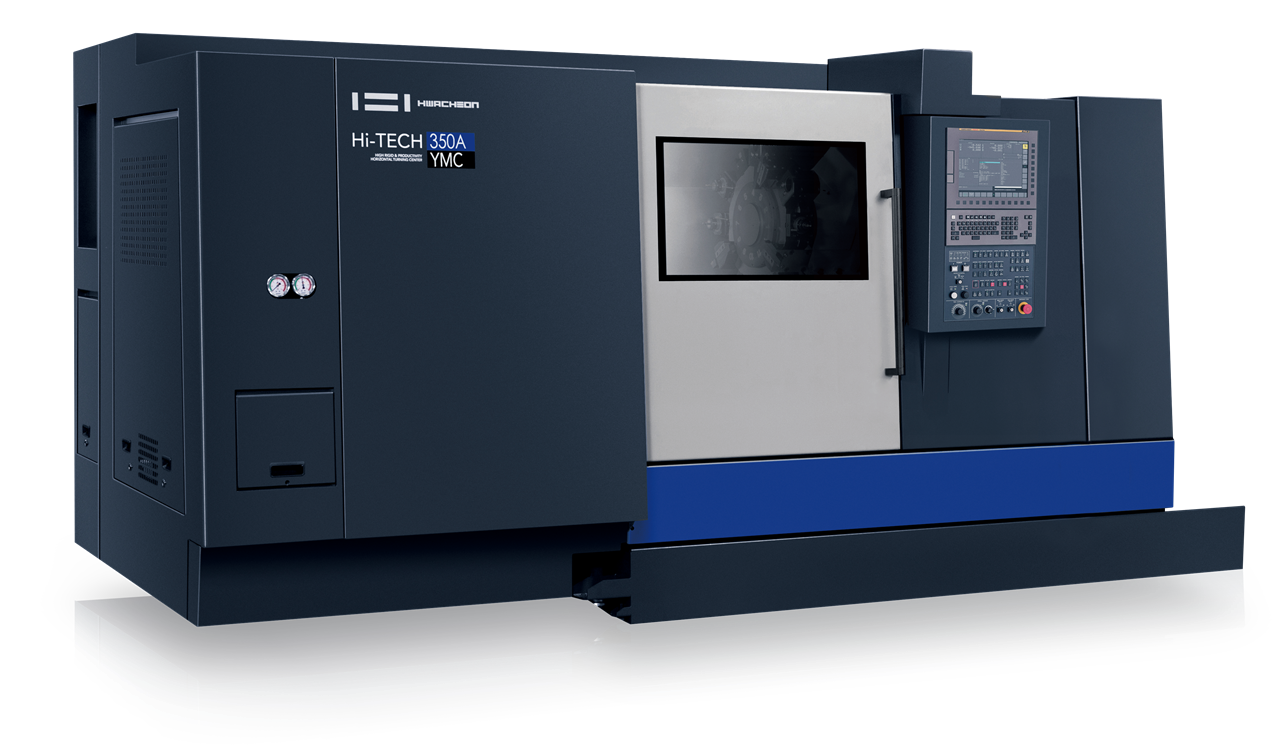

Hi-TECH 350

Y-axis standard, 8”/10” Heavy Duty Horizontal Turning Center

Hi-TECH 350 provides a rigid and stable heavy duty cutting based on a highly rigid box-way feed structure designed with an air-floating system and bed structure while maintains high precision even during long-term processing by minimizing thermal displacement

Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing machines.

Machine Specification

※ MC : Turnmill / Y : Y-Axis/ S : Sub-Spindle

Item		Hi-TECH 350
		Hi-TECH 350A [L] YMC	Hi-TECH 350B [L] YMC	Hi-TECH 350A [L] YSMC	Hi-TECH 350B [L] YSMC
		Capacity
Swing over bed	mm	Ø700	Ø700	Ø700	Ø700
Swing Over Saddle	mm	Ø550	Ø550	Ø550	Ø550
Max Cutting Diameter	mm	Ø420	Ø420	Ø420	Ø420
Standard Cutting Diameter	mm	Ø254	Ø254	Ø254	Ø254
Max Cutting Length	mm	673 [L : 1,273]	673 [L : 1,273]	661 [L : 1,261]	661 [L : 1,261]
Chuck Size (Main)	inch	8	10	8	10
Chuck Size (Sub)	inch	-	-	8	8
Spindle
Type of Spindle Nose	ASA	A2-6	A2-8	A2-6	A2-8
Max Spindle Speed	rpm	5,000	4,000	5,000	4,000
Through Spindle Hole Diameter	mm	Ø75	Ø90	Ø75	Ø90
Max Bar Size	mm	Ø65	Ø76	Ø65	Ø76
Spindle Bearing Inner Diameter	mm	Ø100	Ø130	Ø100	Ø130
Spindle Motor	kW	18.5 / 15 (Opt:22/18.5)	22 / 18.5	18.5 / 15 (Opt:22/18.5)	22 / 18.5
Sub-Spindle (Opt)
Type of Spindle Nose	ASA	-	-	A2-6	A2-6
Max Sub-Spindle Speed	rpm	-	-	4,000	4,000
Through Spindle Hole Dia	mm	-	-	Ø62	Ø62
Max Bar Size	mm	-	-	Ø51	Ø51
Spindle Bearing Inner Dia	mm	-	-	Ø100	Ø100
Spindle Motor	kW	-	-	7.5 / 5.5	7.5 / 5.5
Turret
Number of Tool Station	ea	12	12	12	12
Tool Size (Out Dia x Boring bar size)	mm	□25 × Ø50	□25 × Ø50	□25 × Ø50	□25 × Ø50
Turret Indexing Time	sec/step	0.25	0.25	0.25	0.25
Axes
Rapid Traverse (X / Z / Y / B)	m/min	20 / 24 / 10 / -	20 / 24 / 10 / -	20 / 24 / 10 / 16	20 / 24 / 10 / 16
Max. Stroke (X / Z / Y / B)	mm	280 / 790 / 120 / - [L : 280 / 1,390 / 120 / -]	280 / 790 / 120 / - [L : 280 / 1,390 / 120 / -]	260 / 790 / 120 / 726 [L : 260 / 790 / 120 / 714]	260 / 790 / 120 / 714 [L : 260 / 1,390 / 120 / 1,314
Feed Motor (X / Z / Y / B)	kW	4.0 / 4.0 / 4.0 / -	4.0 / 4.0 / 4.0 / -	4.0 / 4.0 / 4.0 / 1.6	4.0 / 4.0 / 4.0 / 1.6
Tailstock
Tailstock Stroke	mm	650 [L : 1,250]	650 [L : 1,250]	-	-
Cylinder Dia	mm	Ø100	Ø100	-	-
Quill Stroke	mm	120	120	-	-
Quill Taper	MT	#5	#5	-	-
Turnmill (Opt.)
Spindle Motor	kW	3.7 / 2.2	3.7 / 2.2	3.7 / 2.2	3.7 / 2.2
Max Spindle Speed	rpm	5,000	5,000	5,000	5,000
Max Drill/Tap Size (Endmill / Collet size)	mm	Ø20 / ER 32	Ø20 / ER 32	Ø20 / ER 32	Ø20 / ER 32
Min. Index Angle	deg	0.0001	0.0001	0.0001	0.0001
Tank Capacity
Lubrication	ℓ	12	12	12	12
Hydraulic	ℓ	50	50	50	50
Coolant	ℓ	190	240	190	240
Power Sources
Electrical Power Supply	kVA	50	50	55	55
Machine Size
Height	mm	2,205	2,205	2,205	2,205
Floor Space (L x W)	mm	3,500 x 2,045 [L : 4,100 x 2,045]	3,500 x 2,045 [L : 4,100 x 2,045]	3,500 x 2,045 [L : 4,100 x 2,045]	3,500 x 2,045 [L : 4,100 x 2,045]
Weight	Kgf	7,300 [L : 7,900]	7,450 [L : 8,050]	7,700 [L : 8,800]	7,800 [L : 8,900]
NC Controller	-	Fanuc 0i-TF Plus	Fanuc 0i-TF Plus	Fanuc 0i-TF Plus	Fanuc 0i-TF Plus
