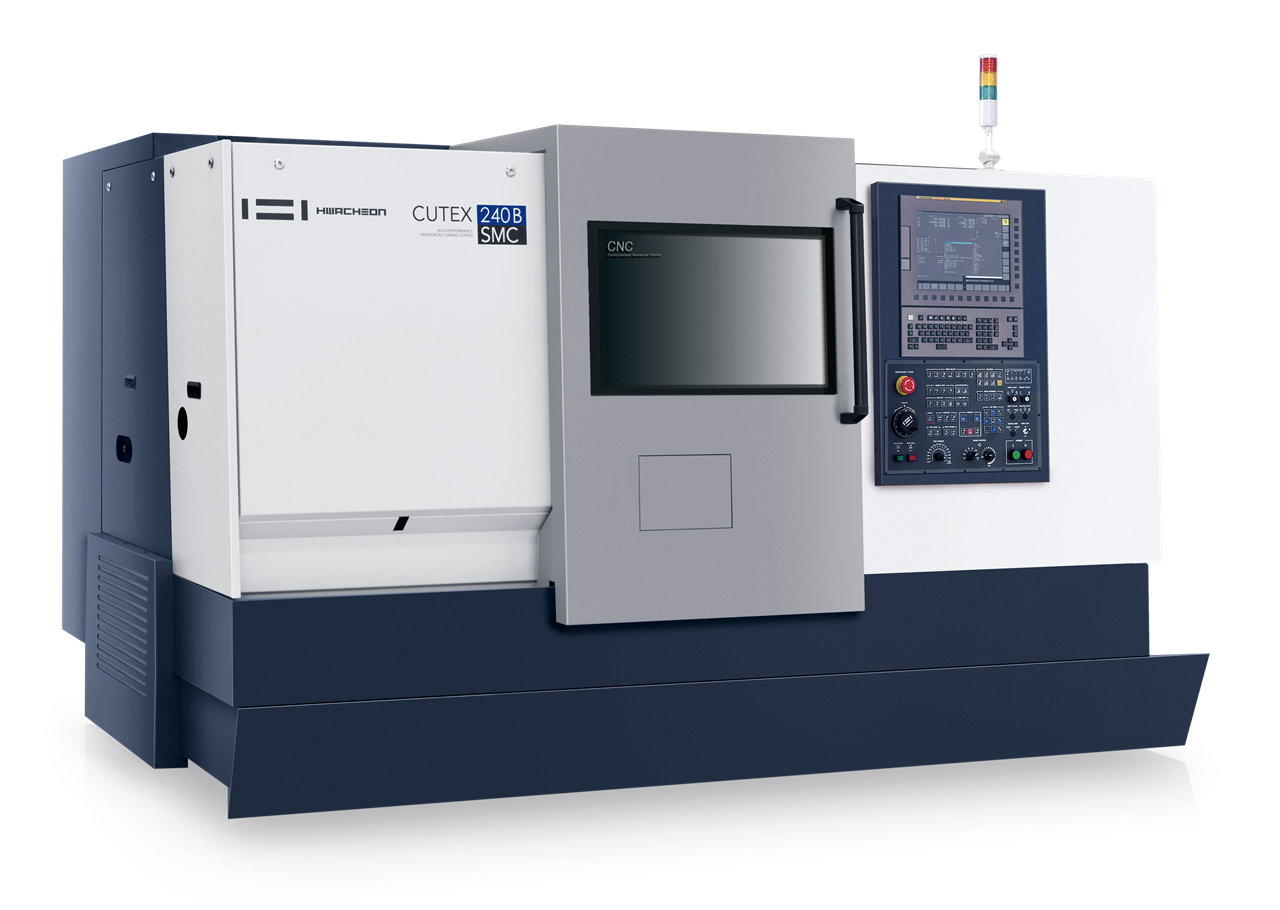

8” / 10” Standard Horizontal Turning Center

CUTEX-240 maintains high precision even during long-term processing by minimizing thermal displacement based on a rigid construction and compact structure.

Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing machines.


Machine Specification
※ MC : Turnmill / S : Sub-Spindle
Item CUTEX-240
CUTEX-240A CUTEX-240B CUTEX-240C CUTEX-240A
MC		 CUTEX-240B
MC		 CUTEX-240C
MC		 CUTEX-240A
SMC		 CUTEX-240B
SMC
Capacity
Swing over bed mm Ø580 Ø580 Ø580 Ø580 Ø580 Ø580 Ø580 Ø580
Max Cutting Diameter mm Ø380 Ø380 Ø380 Ø355 Ø355 Ø355 Ø355 Ø355
Standard Cutting Diameter mm Ø212 Ø212 Ø262 Ø215 Ø215 Ø215 Ø215 Ø267
Max Cutting Length mm 680 671.5 664 565 556.5 548 565 556.5
Chuck Size (Main) inch 8 8 10 8 8 10 8 8
Chuck Size (Sub) inch - - - - - - 6 6
Spindle
Type of Spindle Nose ASA A2-6 A2-6 A2-8 A2-6 A2-6 A2-8 A2-6 A2-6
Max Spindle Speed rpm 5,000 5,000 3,500 5,000 5,000 3,500 5,000 5,000
Through Spindle Hole Diameter mm Ø75 Ø75 Ø90 Ø75 Ø75 Ø90 Ø75 Ø75
Max Bar Size mm Ø51 Ø65 Ø76 Ø51 Ø65 Ø76 Ø51 Ø65
Spindle Bearing Inner Diameter mm Ø100 Ø100 Ø130 Ø100 Ø100 Ø130 Ø100 Ø100
Spindle Motor kW 18.5 / 15 18.5 / 15 18.5 / 15 18.5 / 15 18.5 / 15 18.5 / 15 18.5 / 15 18.5 / 15
Sub-Spindle (Opt)
Type of Spindle Nose ASA - - - - - - A2-5 A2-5
Max Sub-Spindle Speed rpm - - - - - - 6,000 6,000
Through Spindle Hole Dia mm - - - - - - Ø56 Ø56
Max Bar Size mm - - - - - - Ø45 Ø45
Spindle Bearing Inner Dia mm - - - - - - Ø90 Ø90
Spindle Motor kW - - - - - - 7.5 / 5.5 7.5 / 5.5
Turret
Number of Tool Station ea 12 12 10 12 12 10 12 12
Tool Size
(Out Dia x Boring bar size)		 mm □25 × Ø40 □25 × Ø40 □25 × Ø40 □25 × Ø40 □25 × Ø40 □25 × Ø40 □25 × Ø40 □25 × Ø40
Turret Indexing Time sec/step 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15
Axes
Rapid Traverse
(X / Z / B)		 m/min 36 / 36 / - 36 / 36 / - 36 / 36 / - 36 / 36 / - 36 / 36 / - 36 / 36 / 30 36 / 36 / 30 36 / 36 / 30
Max. Stroke
(X / Z / B)		 mm 215 / 700 / - 215 / 700 / - 215 / 700 / - 215 / 665 / - 215 / 665 / - 215 / 665 / - 215 / 665 / 650 215 / 665 / 650
Feed Motor
(X / Z / B)		 kW 3 / 3 / - 3 / 3 / - 3 / 3 / - 3 / 3 / - 3 / 3 / - 3 / 3 / - 3 / 3 / 1.6 3 / 3 / 1.6
Tailstock
Quill Diameter mm Ø80 Ø80 Ø80 Ø80 Ø80 Ø80 - -
Quill Stroke mm 120 120 120 120 120 120 - -
Quill Taper MT #4 #4 #4 #4 #4 #4 - -
Turnmill (Opt.)
Spindle Motor kW - - - 3.7 / 2.2 3.7 / 2.2 3.7 / 2.2 3.7 / 2.2 3.7 / 2.2
Max Spindle Speed rpm - - - 5,000 5,000 5,000 5,000 5,000
Max Drill/Tap Size
(Endmill / Collet size)		 mm - - - Ø20 / ER 32 Ø20 / ER 32 Ø20 / ER 32 Ø20 / ER 32 Ø20 / ER 32
Min. Index Angle deg - - - 0.0001 0.0001 0.0001 0.0001 0.0001
Tank Capacity
Lubrication ℓ 3 3 3 3 3 3 3 3
Hydraulic ℓ 20 20 20 20 20 20 20 20
Coolant ℓ 200 200 200 200 200 200 200 200
Power Sources
Electrical Power Supply kVA 35 35 35 35 35 35 35 35
Machine Size
Height mm 1,915 1,915 1,915 1,915 1,915 1,915 1,915 1,915
Floor Space
(L x W)		 mm 3,230 x 1,815 3,230 x 1,815 3,230 x 1,815 3,230 x 1,815 3,230 x 1,815 3,230 x 1,815 3,230 x 1,815 3,230 x 1,815
Weight Kgf 5,500 5,500 5,500 5,600 5,600 5,600 5,700 5,700
NC Controller - Fanuc 0i-TF Plus Fanuc 0i-TF Plus Fanuc 0i-TF Plus Fanuc 0i-TF Plus Fanuc 0i-TF Plus Fanuc 0i-TF Plus Fanuc 0i-TF Plus Fanuc 0i-TF Plus
